Recknagel | Silencers

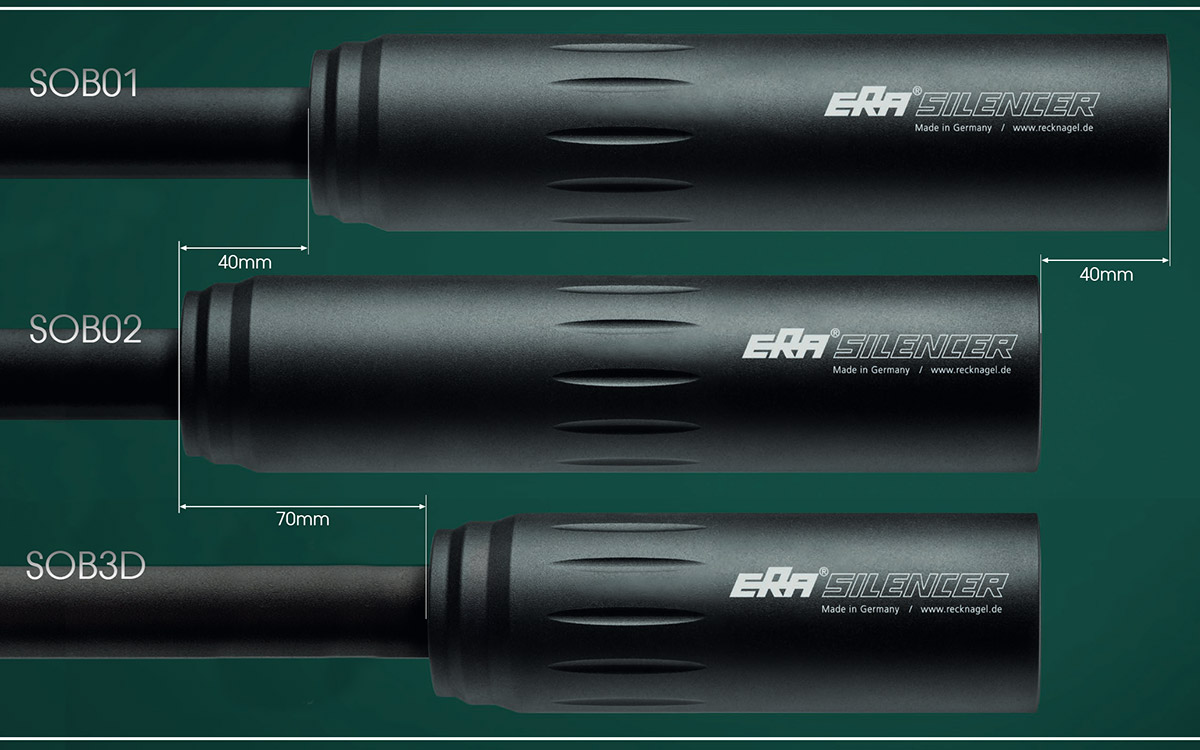

The New Silencers from Recknagel are a revolution. The lightweight silencer provides superb sound reduction in comparision to others on the market. The use an internal baffle system within a solid one-piece outer body. The added benefit of interchangeable threads allows the user to swap between multiple threads in the same calibre group. There are two different models SOB01 and SOB02, see below for more detail.

Recknagel Picatinny Rings

Max. Calibre Thread SOB01 Part No. SOB02 Part No.

5.7mm

.224

M13x1 SOB01-024A SOB02-024A
M14x1 SOB01-025A SOB02-025A
M15x1 SOB01-026A SOB02-026A
M16x1 SOB01-027A SOB02-027A
M17x1 SOB01-028A SOB02-028A
M18x1 SOB01-029A SOB02-029A
1/2" x 20 UNF SOB01-030A SOB02-030A
1/2" x 28 UNEF SOB01-031A SOB02-031A
5/8" x 24 UNEF SOB01-032A SOB02-032A

7.62mm

.30 Cal.

M13x1 SOB01-000A SOB02-000A
M14x1 SOB01-001A SOB02-001A
M15x1 SOB01-002A SOB02-002A
M16x1 SOB01-003A SOB02-003A
M17x1 SOB01-004A SOB02-004A
M18x1 SOB01-005A SOB02-005A
1/2" x 20 UNF SOB01-006A SOB02-006A
1/2" x 28 UNEF SOB01-007A SOB02-007A
5/8" x 24 UNEF SOB01-008A SOB02-008A

8mm

.323

M13x1 SOB01-009A SOB02-009A
M14x1 SOB01-010A SOB02-010A
M15x1 SOB01-011A SOB02-011A
M16x1 SOB01-012A SOB02-012A
M17x1 SOB01-013A SOB02-013A
M18x1 SOB01-014A SOB02-014A
1/2" x 20 UNF SOB01-015A SOB02-015A
1/2" x 28 UNEF SOB01-016A SOB02-016A
5/8" x 24 UNEF SOB01-017A SOB02-017A
.375 M14x1 SOB01-018A SOB02-018A
M15x1 SOB01-019A SOB02-019A
M16x1 SOB01-020A SOB02-020A
M17x1 SOB01-021A SOB02-021A
M18x1 SOB01-022A SOB02-022A
5/8" x 24 UNEF SOB01-023A SOB02-023A

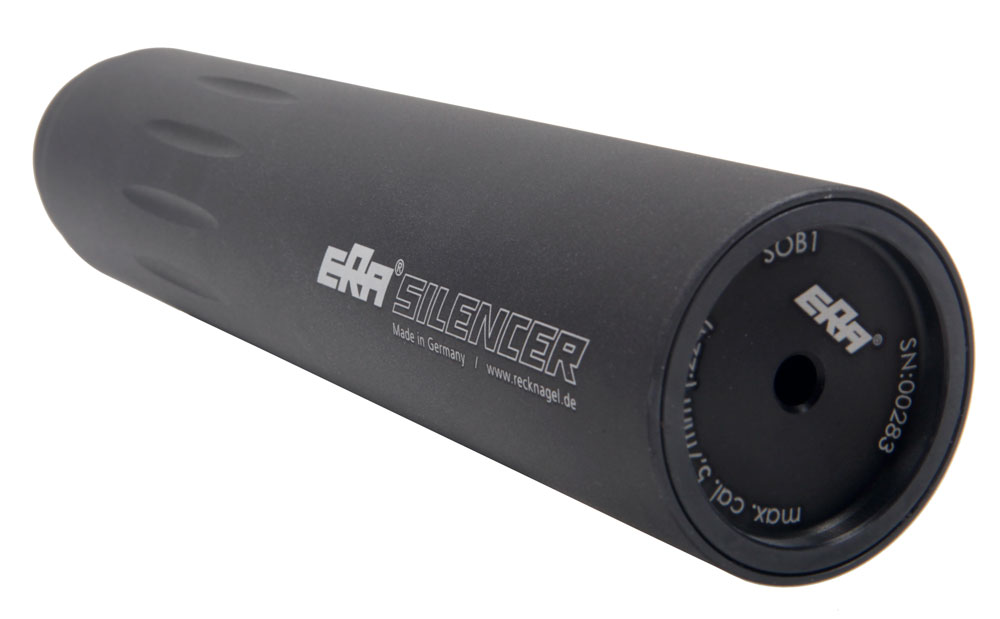

SOB01

The original Recknagel Silencer, boasting 32db of sound reduction, it's almost certainly the best quality silencer in it's price range on the market. Comes complete with a tool to remove the thread.

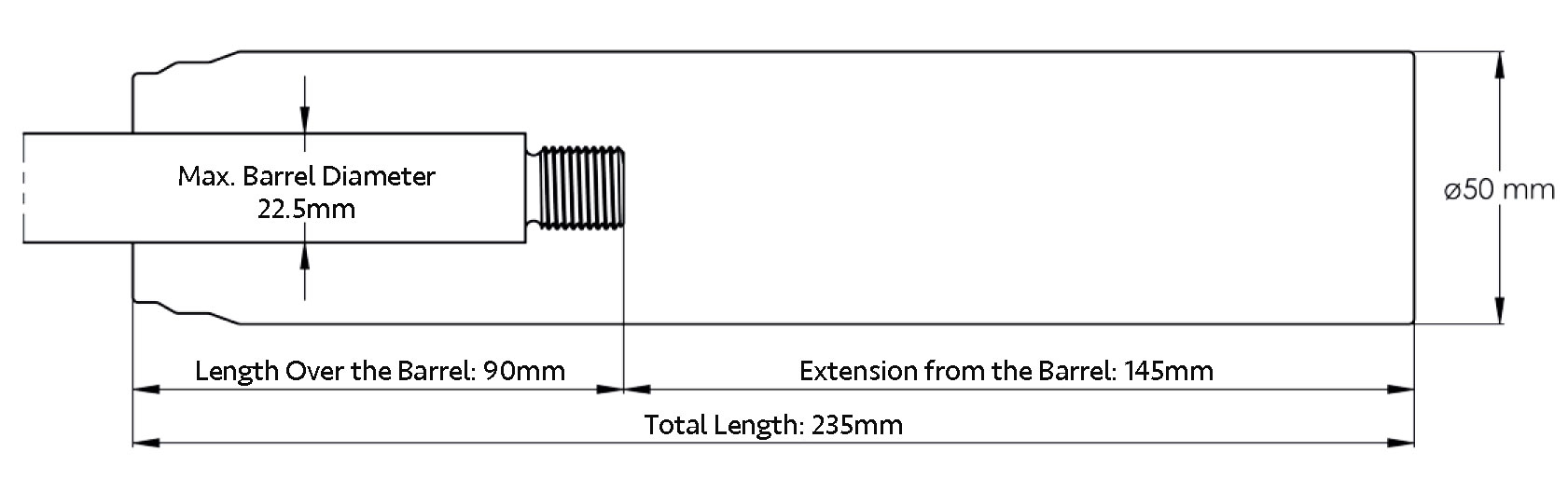

Diameter 50mm
Total Length 235mm
Adds to Barrel 145mm
Section Over Barrel 90mm
Max. Barrel Diameter 22.5mm
Weight 387g
Decibel Reduction 32 db
RRP £420.00



Recknagel Picatinny Rings
Recknagel Silencer
Recknagel Silencer

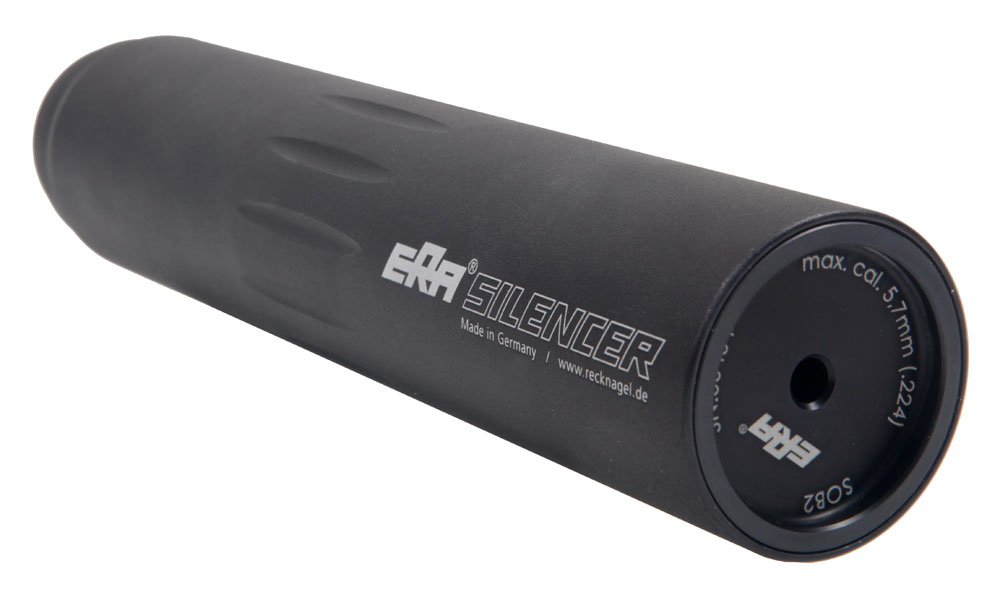

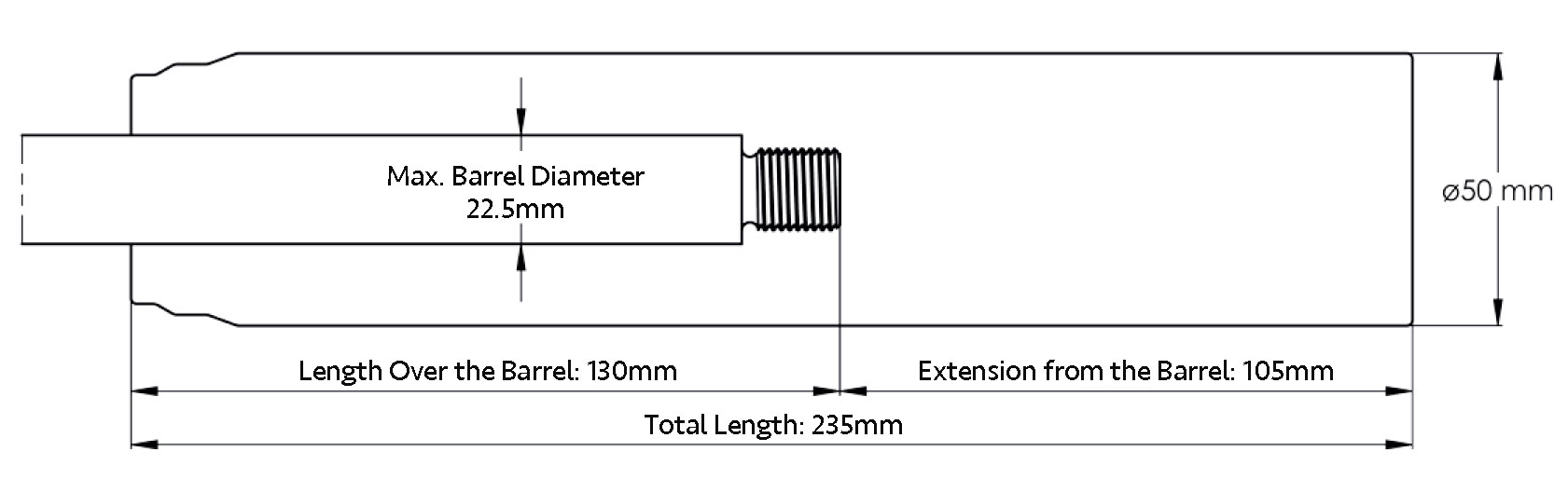

SOB02

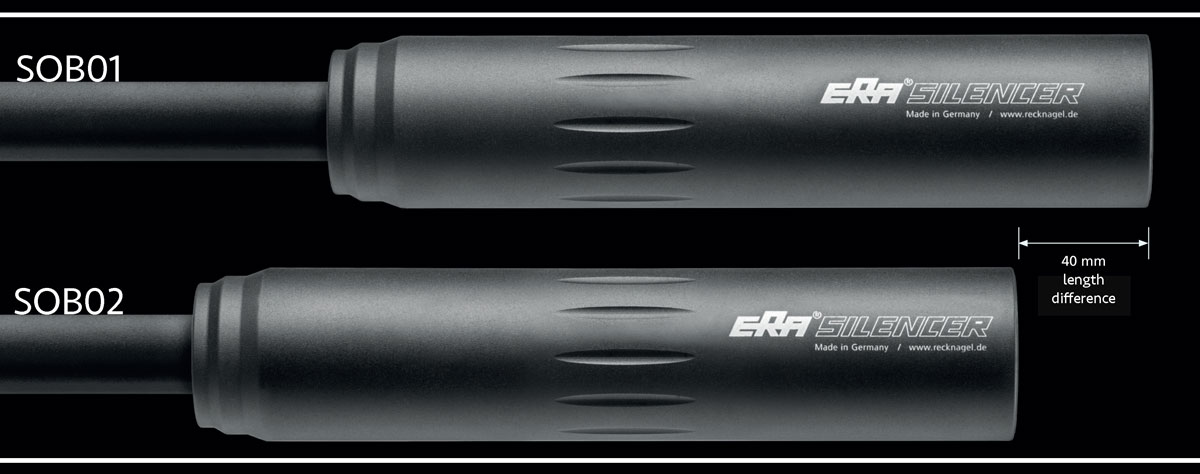

The SOB02 has the thread situated further into the body of the silencer, reducing the length added to the barrel by 40mm. Both silencers are the same length in total and same diameter. Comes complete with a tool to remove the thread.

Diameter 50mm
Total Length 235mm
Adds to Barrel 105mm
Section Over Barrel 130mm
Max. Barrel Diameter 22.5mm
Weight 378g
Decibel Reduction 28 db
RRP £420.00
Recknagel Picatinny Rings
Recknagel Silencer

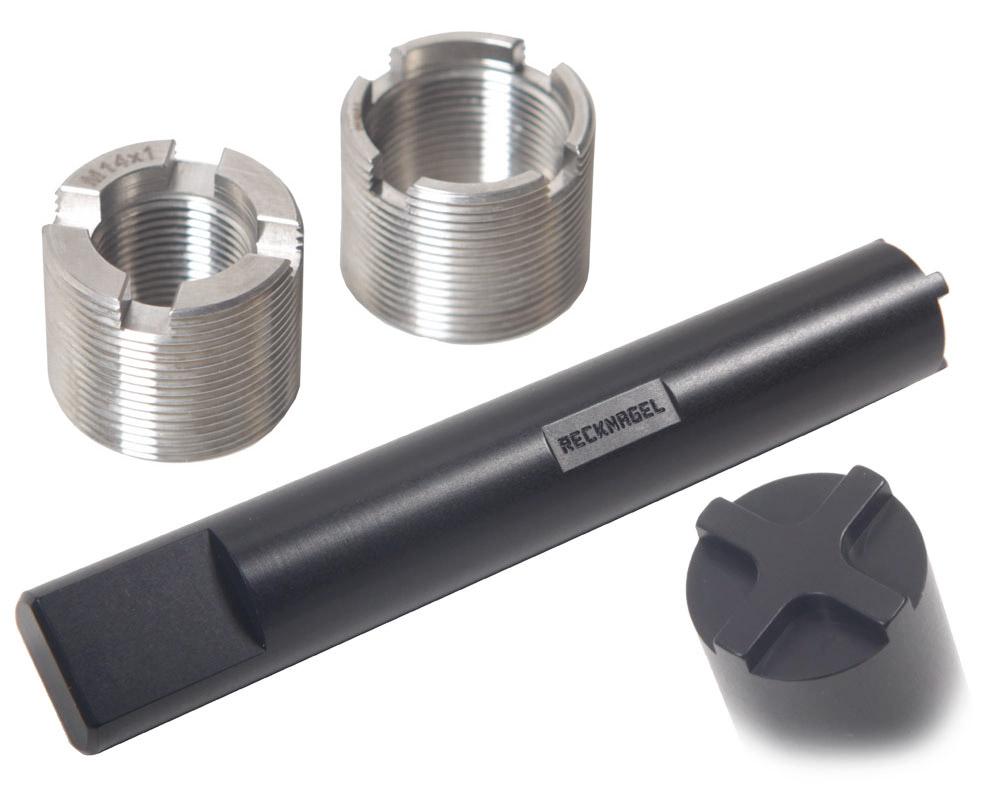

Change the Thread

Additional threads can be exchanged onto each of the Recknagel Silencers. So if you have multiple rifles with different threads in the same calibre group, you can change the thread on the silencer accordingly. The tool to remove the thread is included with every moderator. Separate threads are available individually. Please note that the silencer must be in the same group, otherwise serious damage to the unit and harm to the user will be caused.

Imperial Threads 1/2" x 20 UNF
1/2" x 28 UNEF
5/8" x 24 UNEF
Metric Threads M13x1
M14x1
M15x1
M16x1
M17x1
M18x1
RRP £17.00 each
