Recknagel | Silencers
AVAILABLE FROM YOUR LOCAL GUN SHOP - CONTACT THEM TODAY TO PLACE YOUR ORDER

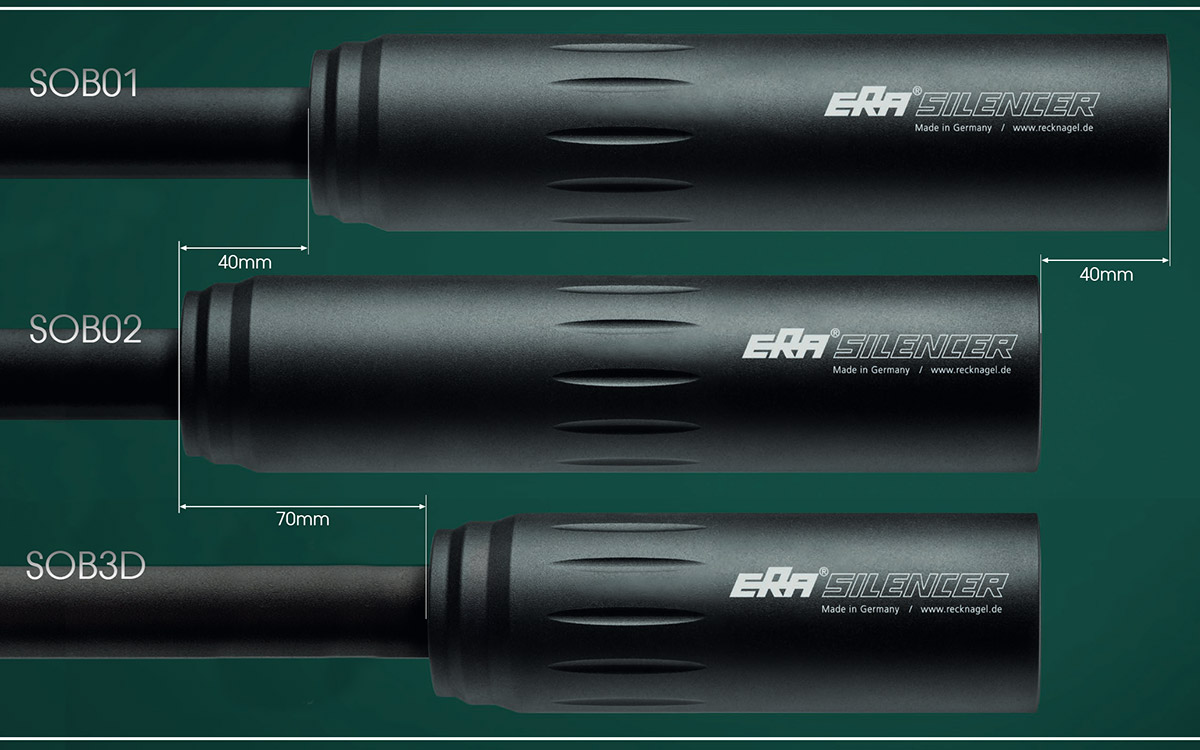

The New Silencers from Recknagel are a revolution. The lightweight silencer provides superb sound reduction in comparision to others on the market. The use an internal baffle system within a solid one-piece outer body. The added benefit of interchangeable threads allows the user to swap between multiple threads in the same calibre group. There are multiple models SOB01, SOB02 and SOB3D, see below for more options.
The Latest Recknagel ERA Silencer Catalogue
The latest Recknagel ERA Silencer Catalogue is available.
| Max. Calibre | Thread | SOB01 Part No. | SOB02 Part No. | SOB3D Part No |
5.7mm .224 |
ERA LOC | SOB01-042A | SOB02-042A | SOB3D-042A |
| M14x1 | SOB01-025A | SOB02-025A | SOB3D-025A | |
| M14x1 | SOB01-025A | SOB02-025A | SOB02-025A | |
| M15x1 | SOB01-026A | SOB02-026A | SOB02-026A | |
| M16x1 | SOB01-027A | SOB02-027A | SOB02-027A | |
| M17x1 | SOB01-028A | SOB02-028A | SOB02-028A | |
| M18x1 | SOB01-029A | SOB02-029A | SOB02-029A | |
| 1/2" x 20 UNF | SOB01-030A | SOB02-030A | SOB02-030A | |
| 1/2" x 28 UNEF | SOB01-031A | SOB02-031A | SOB02-031A | |
| 5/8" x 24 UNEF | SOB01-032A | SOB02-032A | SOB02-032A | |
6.5mm |
||||
| M13x1 | SOB01-033A | SOB02-033A | SOB3D-033A | |
| M14x1 | SOB01-034A | SOB02-034A | SOB3D-034A | |
| M15x1 | SOB01-035A | SOB02-035A | SOB3D-035A | |
| M16x1 | SOB01-036A | SOB02-036A | SOB3D-036A | |
| M17x1 | SOB01-037A | SOB02-037A | SOB3D-037A | |
| M18x1 | SOB01-038A | SOB02-038A | SOB3D-038A | |
| 1/2" x 20 UNF | SOB01-039A | SOB02-039A | SOB3D-039A | |
| 1/2" x 28 UNEF | SOB01-040A | SOB02-040A | SOB3D-040A | |
| 5/8" x 24 UNEF | SOB01-041A | SOB02-041A | SOB3D-041A | |
| ERA LOC | SOB01-046A | SOB02-046A | SOB3D-046A | |
7.62mm .30 Cal. |
M13x1 | SOB01-000A | SOB02-000A | SOB3D-000A |
| M14x1 | SOB01-001A | SOB02-001A | SOB3D-001A | |
| M15x1 | SOB01-002A | SOB02-002A | SOB3D-002A | |
| M16x1 | SOB01-003A | SOB02-003A | SOB3D-003A | |
| M17x1 | SOB01-004A | SOB02-004A | SOB3D-004A | |
| M18x1 | SOB01-005A | SOB02-005A | SOB3D-005A | |
| 1/2" x 20 UNF | SOB01-006A | SOB02-006A | SOB3D-006A | |
| 1/2" x 28 UNEF | SOB01-007A | SOB02-007A | SOB3D-007A | |
| 5/8" x 24 UNEF | SOB01-008A | SOB02-008A | SOB3D-008A | |
| ERA LOC | SOB01-043A | SOB02-043A | SOB3D-043A | |
8mm .323 |
M13x1 | SOB01-009A | SOB02-009A | SOB3D-009A |
| M14x1 | SOB01-010A | SOB02-010A | SOB3D-010A | |
| M15x1 | SOB01-011A | SOB02-011A | SOB3D-011A | |
| M16x1 | SOB01-012A | SOB02-012A | SOB3D-012A | |
| M17x1 | SOB01-013A | SOB02-013A | SOB3D-013A | |
| M18x1 | SOB01-014A | SOB02-014A | SOB3D-014A | |
| 1/2" x 20 UNF | SOB01-015A | SOB02-015A | SOB3D-015A | |
| 1/2" x 28 UNEF | SOB01-016A | SOB02-016A | SOB3D-016A | |
| 5/8" x 24 UNEF | SOB01-017A | SOB02-017A | SOB3D-017A | |
| ERA LOC | SOB01-044A | SOB02-044A | SOB3D-044A | |
| 9.5mm .375 |
M14x1 | SOB01-018A | SOB02-018A | SOB3D-018A |
| M15x1 | SOB01-019A | SOB02-019A | SOB3D-019A | |
| M16x1 | SOB01-020A | SOB02-020A | SOB3D-020A | |
| M17x1 | SOB01-021A | SOB02-021A | SOB3D-021A | |
| M18x1 | SOB01-022A | SOB02-022A | SOB3D-022A | |
| 5/8" x 24 UNEF | SOB01-023A | SOB02-023A | SOB3D-023A | |
| ERA LOC | SOB01-045A | SOB02-045A | SOB3D-045A |

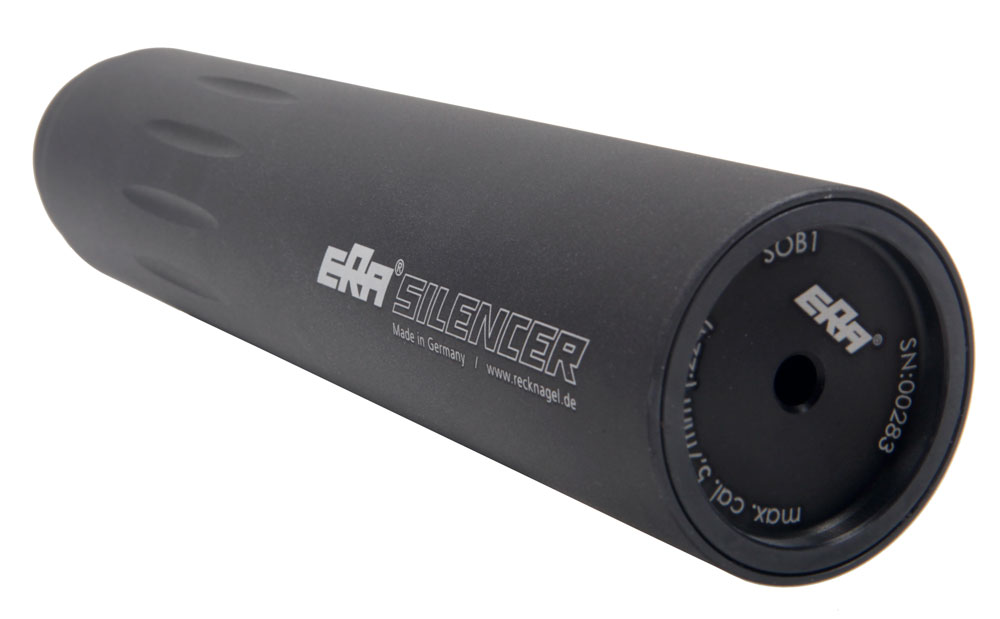

SOB01
The original Recknagel Silencer, boasting 32db of sound reduction, it's almost certainly the best quality silencer in it's price range on the market. Comes complete with a tool to remove the thread.

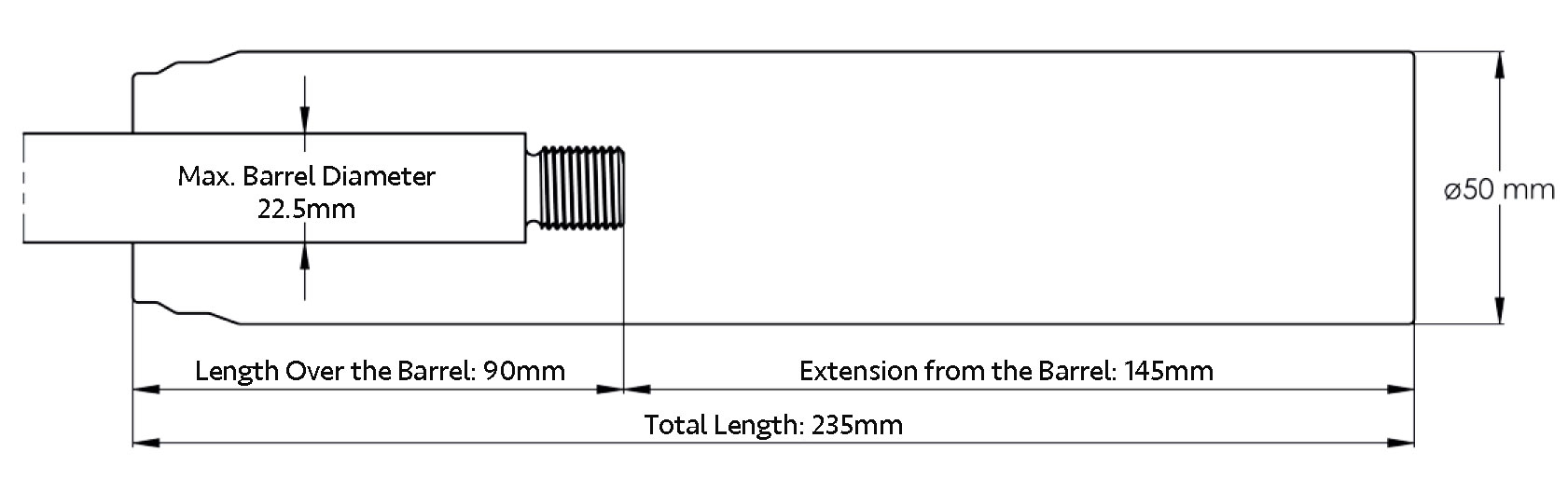

| Diameter | 50mm |
| Total Length | 235mm |
| Adds to Barrel | 145mm |
| Section Over Barrel | 90mm |
| Max. Barrel Diameter | 22.5mm |
| Weight | 387g |
| Decibel Reduction | 32 db |

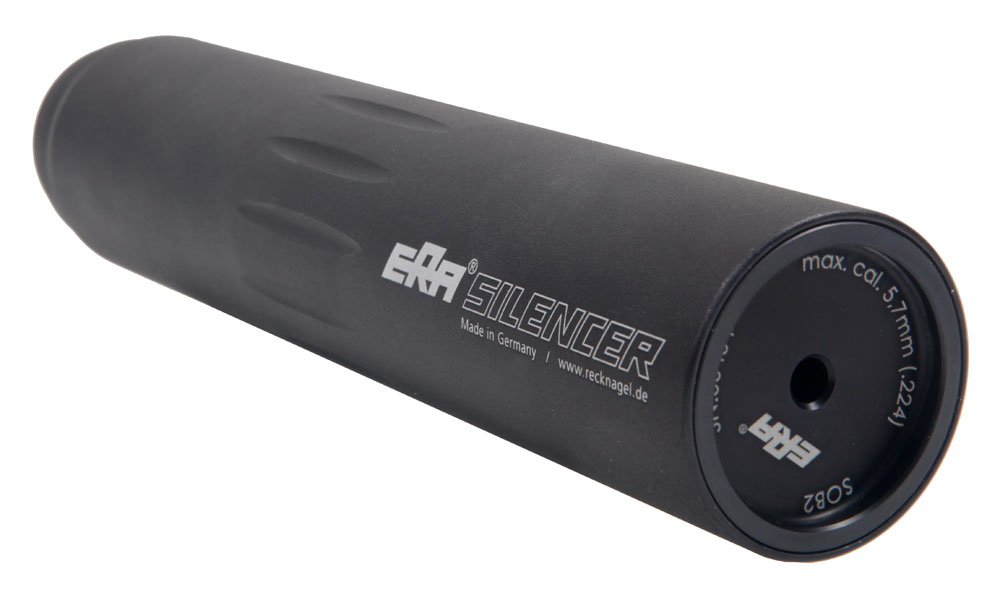

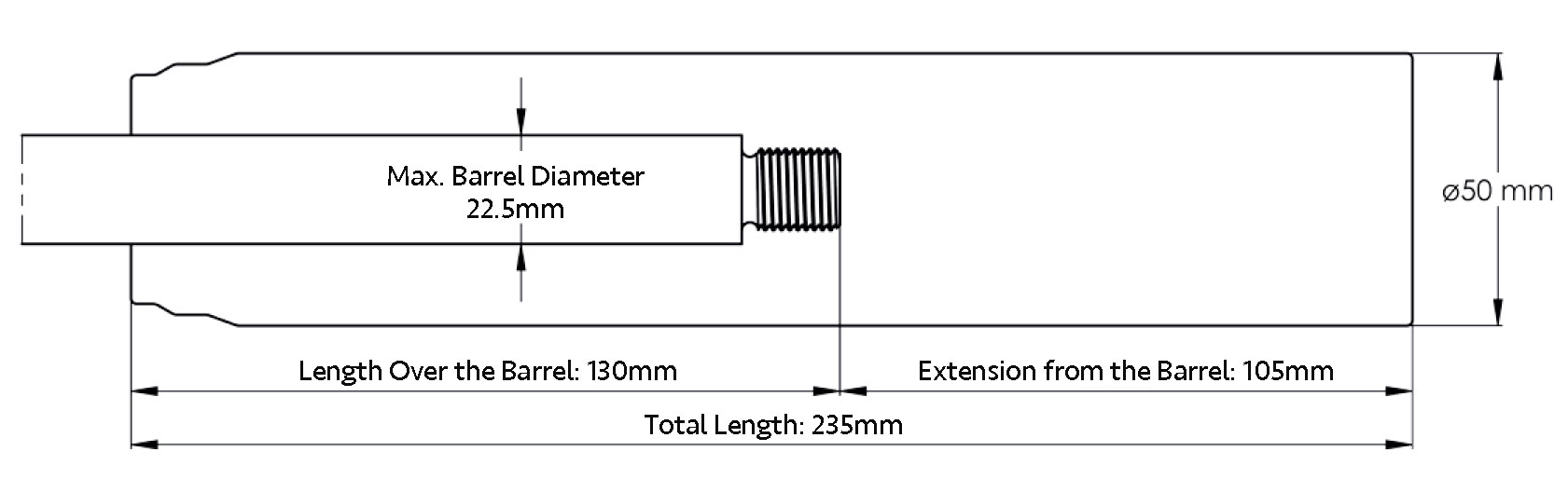

SOB02

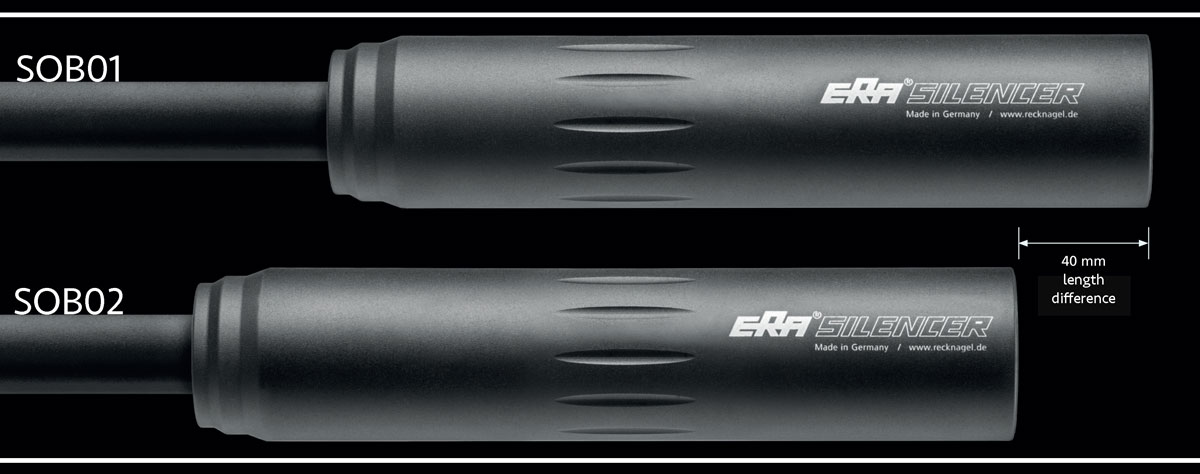

The SOB02 has the thread situated further into the body of the silencer, reducing the length added to the barrel by 40mm. Both silencers are the same length in total and same diameter. Comes complete with a tool to remove the thread.
| Diameter | 50mm |
| Total Length | 235mm |
| Adds to Barrel | 105mm |
| Section Over Barrel | 130mm |
| Max. Barrel Diameter | 22.5mm |
| Weight | 378g |
| Decibel Reduction | 28 db |

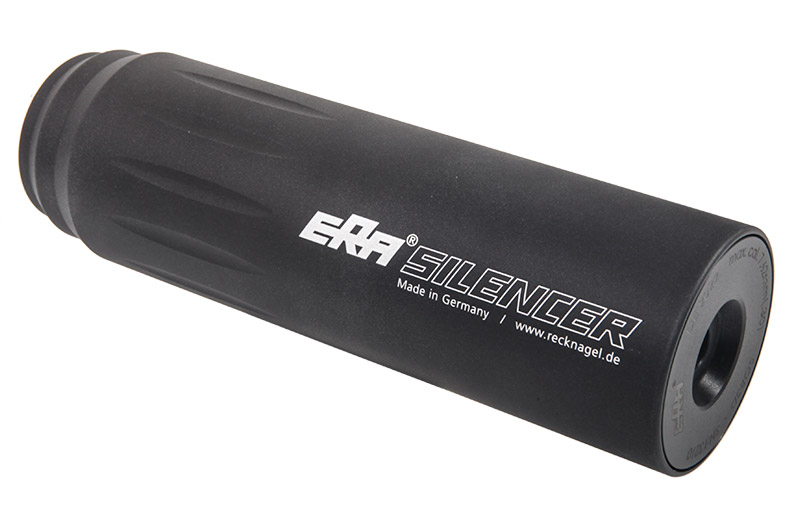

SOB3D

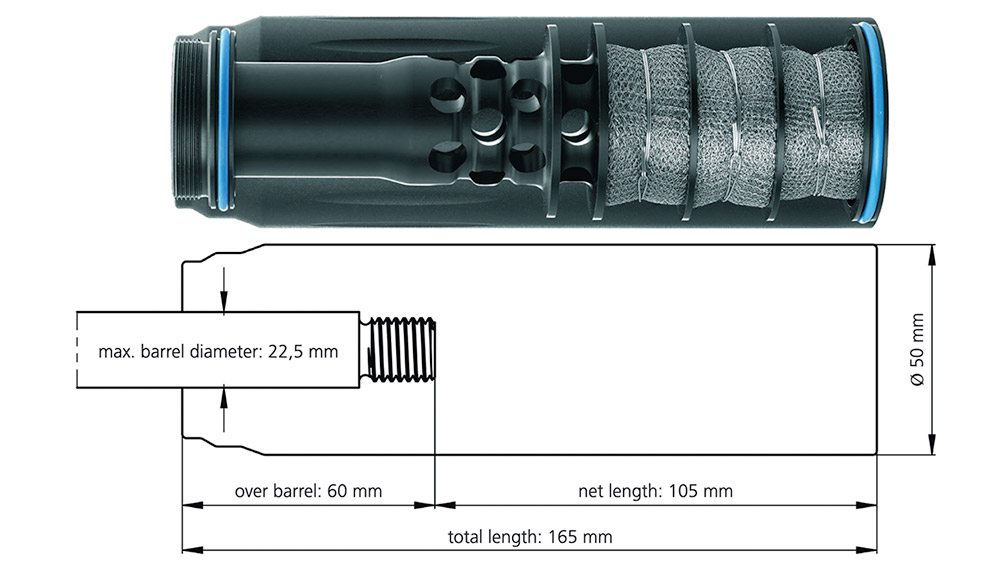

The SOB3D has Excellent suppression due to integrated stainless steel mesh in the baffles. With no first round pop, an important feature when hunting. Being super short and light means the rifle’s handling hardly changes.
| Diameter | 50mm |
| Total Length | 165mm |
| Adds to Barrel | 105mm |
| Section Over Barrel | 60mm |
| Max. Barrel Diameter | 22.5mm |
| Weight | 326g |
| Decibel Reduction | 31 db |

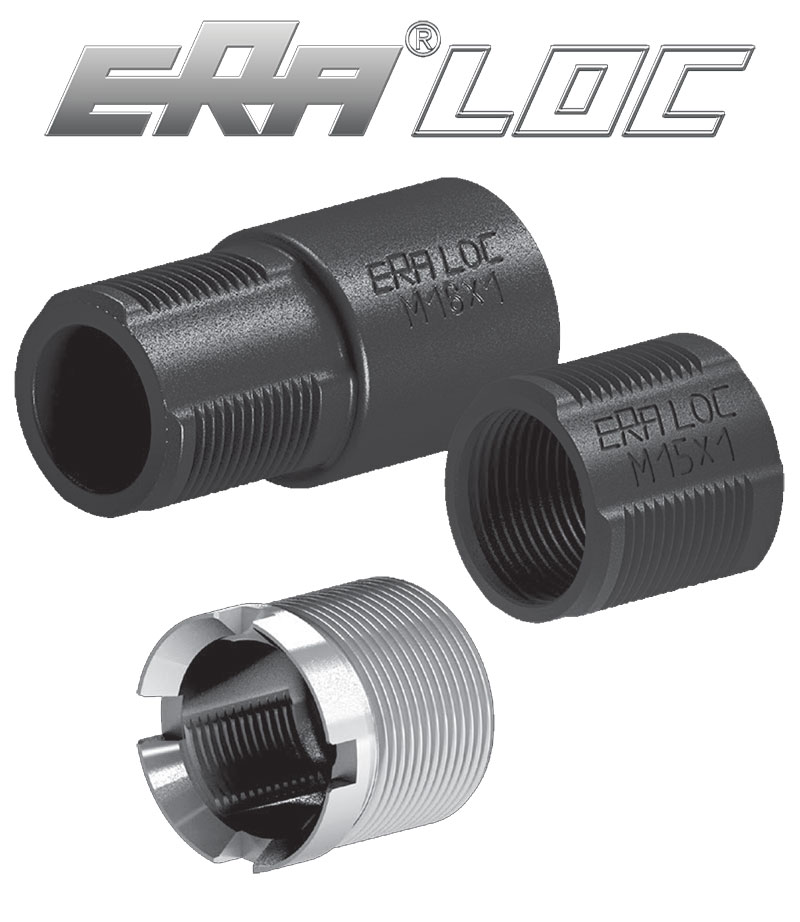

ERA®LOC
The endless screwing and unscrewing of the silencer has come to an end!
The ERA®LOC quick release allows the silencer to be set up and released quickly and easily with just a short 60° turn. The very robust thread ensures a secure hold of the suppressor due to the high number of threads. The attachment on the front side of the threaded bush protects the thread itself from powder residues and guarantees a consistent and safe function.
Our ERA®Silencers are now available with optional ERA®LOC quick release. All you need is the matching ERA®LOC muzzle adapter.
Existing ERA®Silencers can be easily retrofitted. You need our ERA®LOC adapter set, consisting of muzzle adapter, threaded bushing with assembly bolt and the assembly tool.
You can watch a short video of the ERA®LOC in action - Watch Video Here
| Threads | Adapter Set | Muzzle Adapter |
M13x1 |
S0003-1310 S0003-1410 S0003-1510 S0003-1610 S0003-1710 S0003-1810 S0003-1220 S0003-1280 S0003-5824 |
S0002-1310 S0002-1410 S0002-1510 S0002-1610 S0002-1710 S0002-1810 S0002-1220 S0002-1280 S0002-5824 |

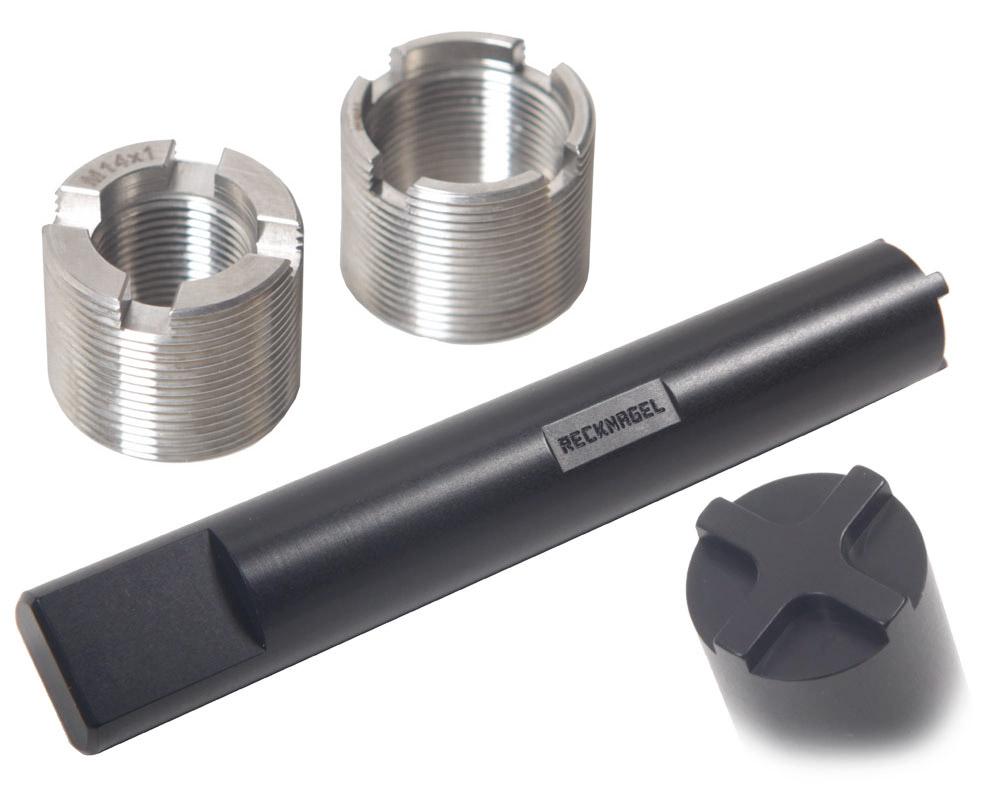

Change the Thread
Additional threads can be exchanged onto each of the Recknagel Silencers. So if you have multiple rifles with different threads in the same calibre group, you can change the thread on the silencer accordingly. The tool to remove the thread is included with every moderator. Separate threads are available individually. Please note that the silencer must be in the same group, otherwise serious damage to the unit and harm to the user will be caused.
| Imperial Threads | 1/2" x 20 UNF 1/2" x 28 UNEF 5/8" x 24 UNEF |
| Metric Threads | M13x1 M14x1 M15x1 M16x1 M17x1 M18x1 |
Ordering Your Moderator
We can supply any Gun Shop or RFD. So get in contact with them today to place your order. We cannot supply a moderator mail order, it will need to be delivered to an RFD or sold on a face-to-face purchase with a firearm certificate holder.
