Schultz & Larsen Sound Moderators

Schultz & Larsen were quick to realise the potential of sound moderators.  Silencing the report of the rifle is good for the environment, increases the precision of the rifle and reduces the risk of hearing damage.

Unusually, for a rifle maker at least, Schultz & Larsen have chosen to design and manufacture their own moderators.  In doing so they have set the same standards for performance demanded of their rifles.

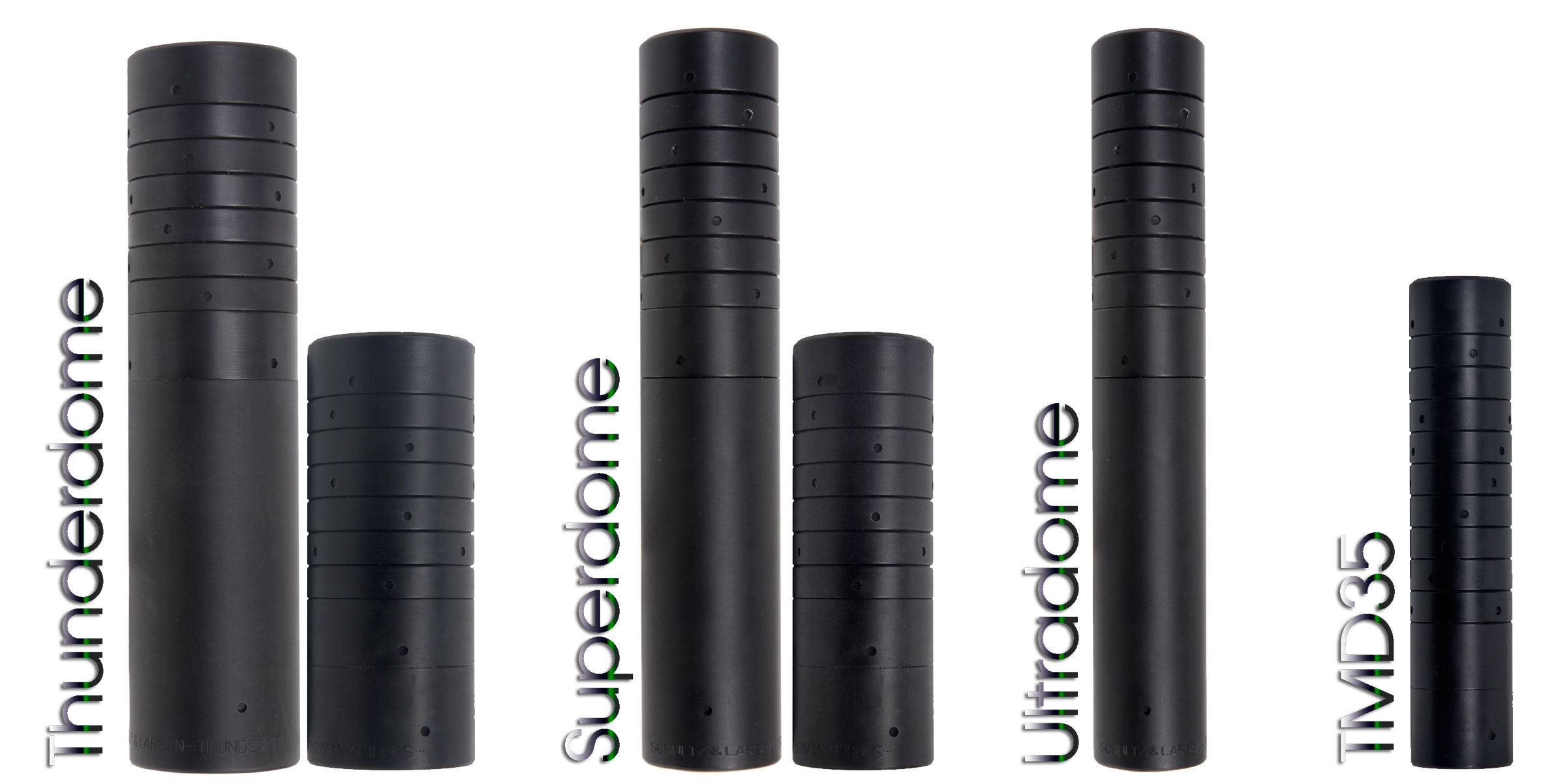

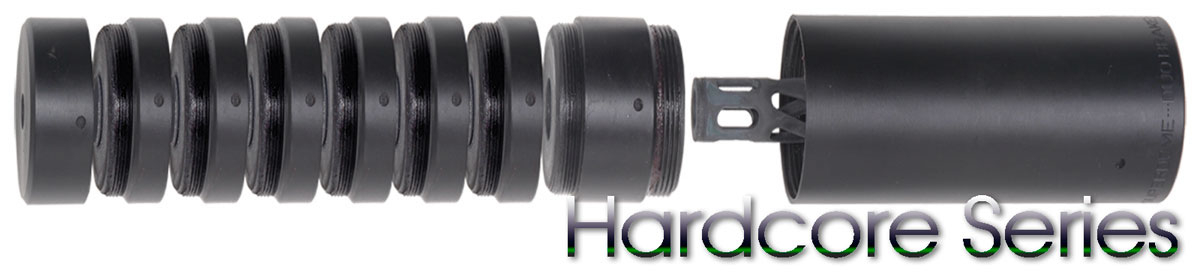

Each moderator is made of the highest quality materials and designed to withstand repeated firing with heavy calibres.  Every baffle has a stainless steel cone in the centre to ensure longevity – hence the designation for this model range – ‘Schultz & Larsen Hardcore’.

The rear section of the over-barrel models is machined from solid bar and that alone is an impressive piece of engineering.

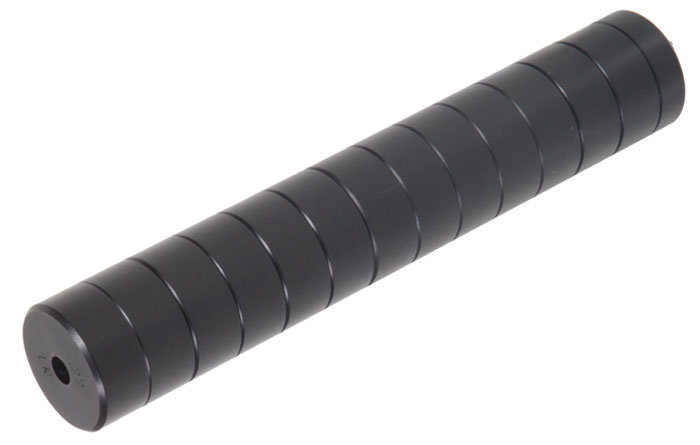

Schultz & Larsen Superdome
Schultz & Larsen Superdome

MICRO / TMD 35 - RRP £165.00

The slimest moderator in the Hardcore range. Weighing only 256g, adding only 148mm to the length of the rifle.

  Muzzle Mounted
Length 163mm
Adds to barrel length 148mm
Diameter 35mm
Weight 256 g

Available in 6mm (.236” max).  7mm (.275” max).  8mm (.315mm max)
Maximum barrel diameter: 20mm at the muzzle.

Thread sizes
Metric Imperial
M14x1 1/2” x 20 UNF
Schultz & Larsen TMD35 Moderator

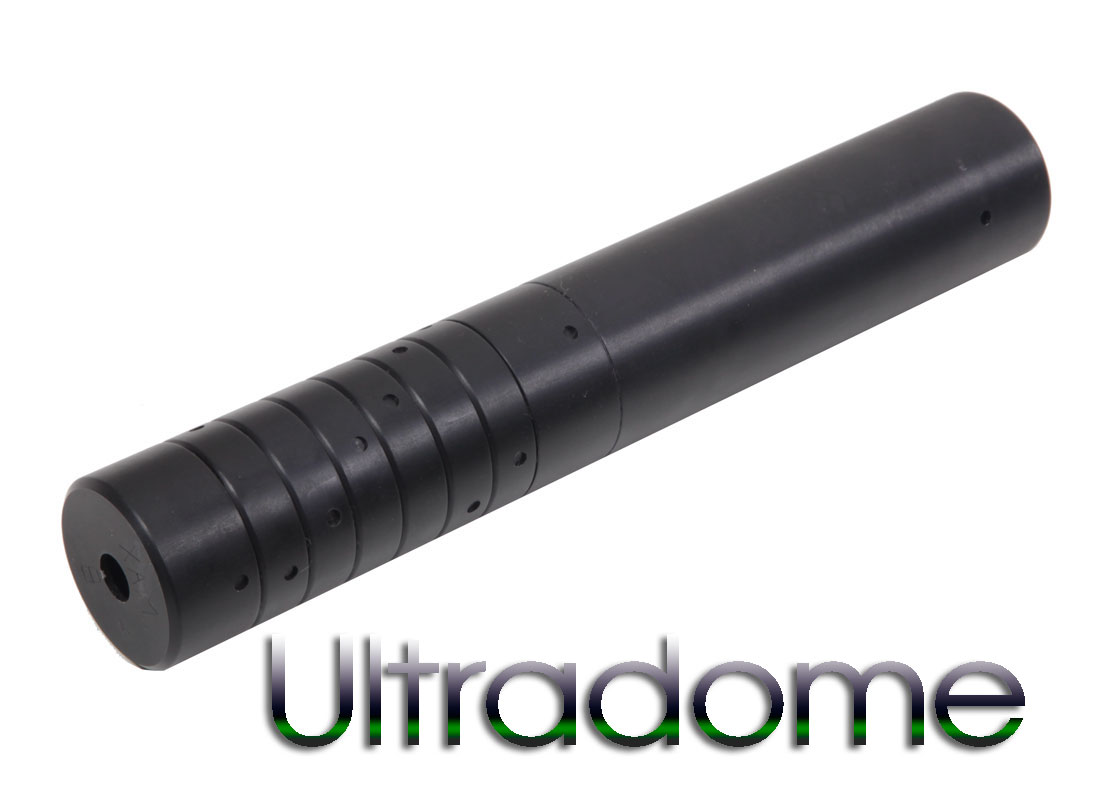

Ultradome - RRP £210.00

Although the Ultradome was designed to provide a slim and lightweight moderator for use on the Legacy, it's performance is excellent and the slim profile makes it the moderator of choice for many using larger calibres.

  Over Barrel
Length 225mm
Adds to barrel length 120mm
Diameter 38mm
Weight 322 g

Available in 6mm (.236” max).  7mm (.275” max).  8mm (.315mm max)
Maximum barrel diameter: 18mm at 100mm from the muzzle

Thread sizes
Metric Imperial
M14x1
M15x1
1/2” x 20 UNF
1/2” x 28 UNEF
Schultz & Larsen Ultradome Moderator

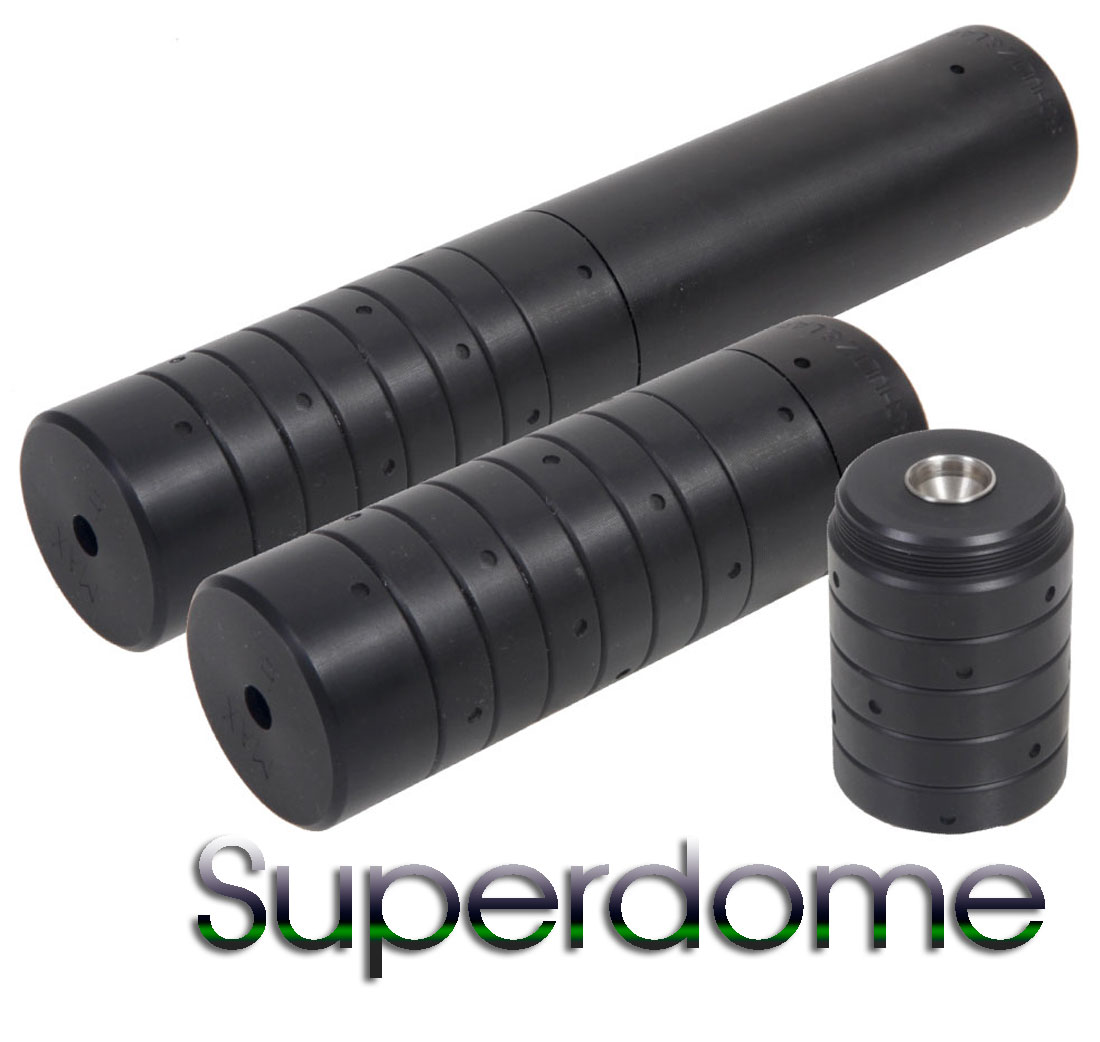

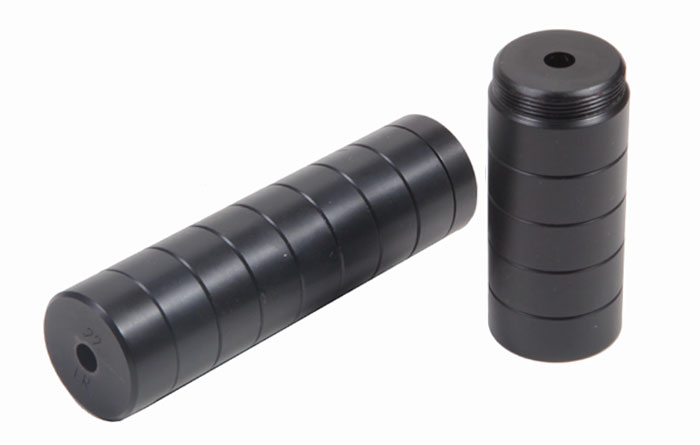

Superdome Muzzle Mounted - RRP £235.00
Superdome Over Barrel - RRP £235.00

The Superdome performs well on all standard calibres and offers a good compromise between effective moderation and weight.

  Over Barrel Muzzle Mounted
Length 225mm 136mm
Adds to barrel length 120mm 120mm
Diameter 44mm 44mm
Weight 385 g 280 g

Available in 6mm (.236” max).  7mm (.275” max).  8mm (.315mm max)
Maximum barrel diameter: 20mm at 100mm from the muzzle

Thread sizes
Metric Imperial
M14x1
M15x1
1/2” x 20 UNF
1/2” x 28 UNEF
5/8” x 24
Schultz & Larsen Superdome

An additional baffle module is available as an add on to further increase the noise reduction. The module adds 53mm to the length and around 100g to the weight. If you wish to add or remove modules you will need the pair of C-spanners made by Schultz & Larsen for this purpose.

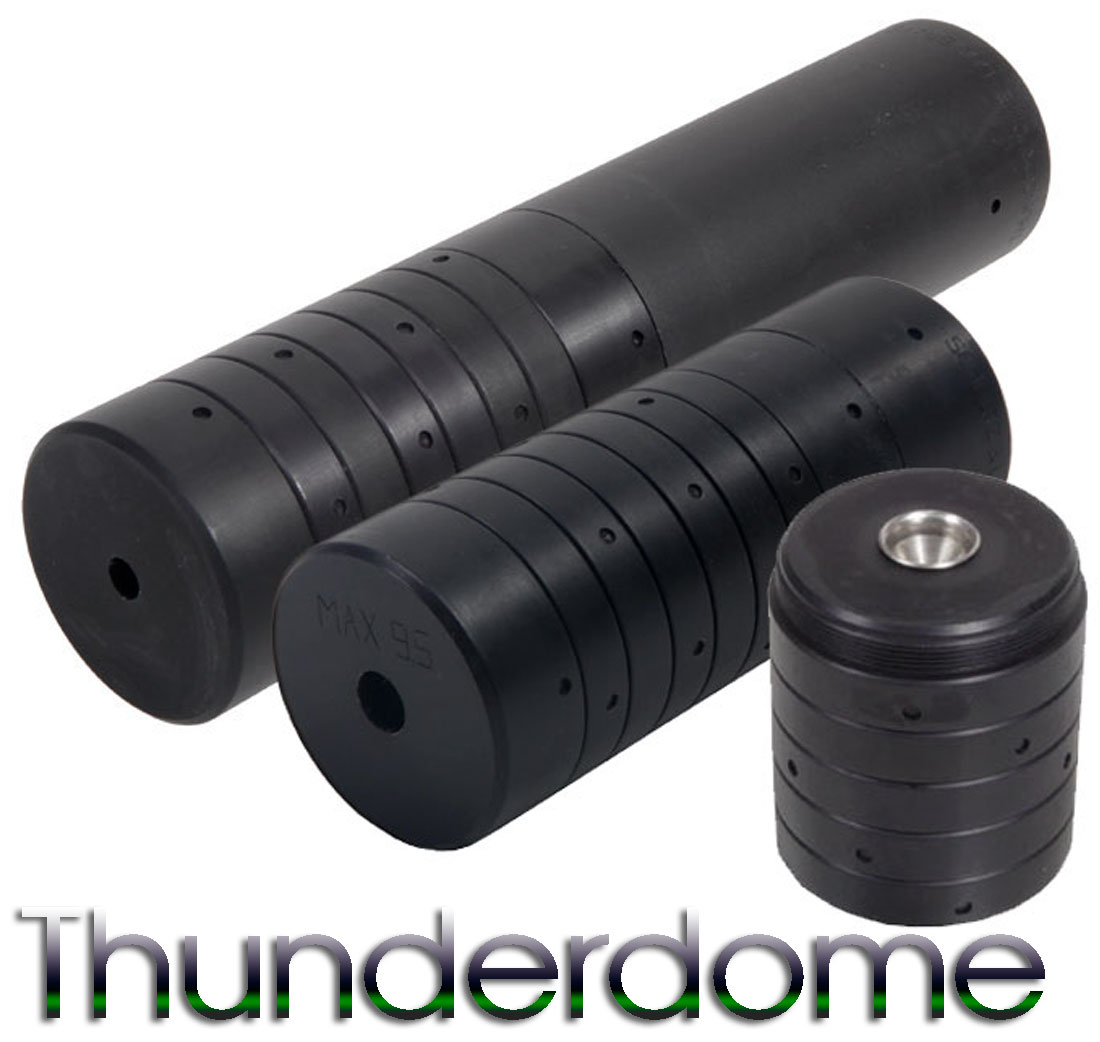

Thunderdome Muzzle Mounted - RRP £275.00
Thunderdome Over Barrel - RRP £275.00

The Thunderdome is the moderator for those wanting maximum noise reduction and recoil reduction.  This big moderator has the capacity to handle the most powerful loads and is especially recommended for taming the big magnums.

  Over Barrel Muzzle Mounted
Length 225mm 135mm
Adds to barrel length 120mm 120mm
Diameter 54mm 54mm
Weight 523 g 387 g

Available in 6mm (.243” max).  7mm (.275” max).  8mm (.315mm max). 9.5mm (.338 Win Mag Max). Maximum barrel diameter: 22mm at 100mm from the muzzle

Thread sizes
Metric Imperial
M14x1
M15x1
M17x1
M18x1
1/2” x 20 UNF
1/2” x 28 UNEF
5/8” x 24
Schultz & Larsen Thunderdome

An additional baffle module is available as an add on to further increase the noise reduction. The module adds 54mm to the length and around 150g to the weight. If you wish to add or remove modules you will need the pair of C-spanners made by Schultz & Larsen for this purpose.


Schultz & Larsen Superdome

Ultra Venom - RRP £320.00

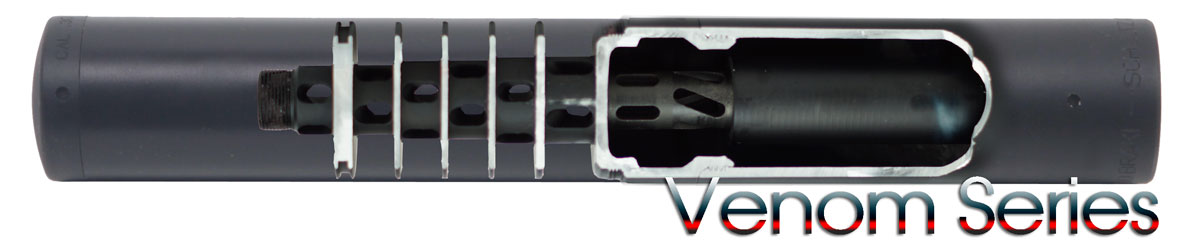

The latest in the Venom Series, the Ultra Venom is an over barrel moderator offering stunning sound reduction for the size and weight. Featuring a the same efficient internal design throughout the series, but a more compact version with a tough scratch resistant external finish.

  Over Barrel
Length 255mm
Adds to barrel length 150mm
Diameter 38mm
Weight 341 g

Available in 6.5mm (.256” max).  7mm (.275” max). 8mm (.315mm max). New for the UK is the .30" cal.

Thread sizes
Metric Imperial
M14x1
M15x1
1/2” x 20 UNF
1/2” x 28 UNEF
Schultz & Larsen Venom Moderator

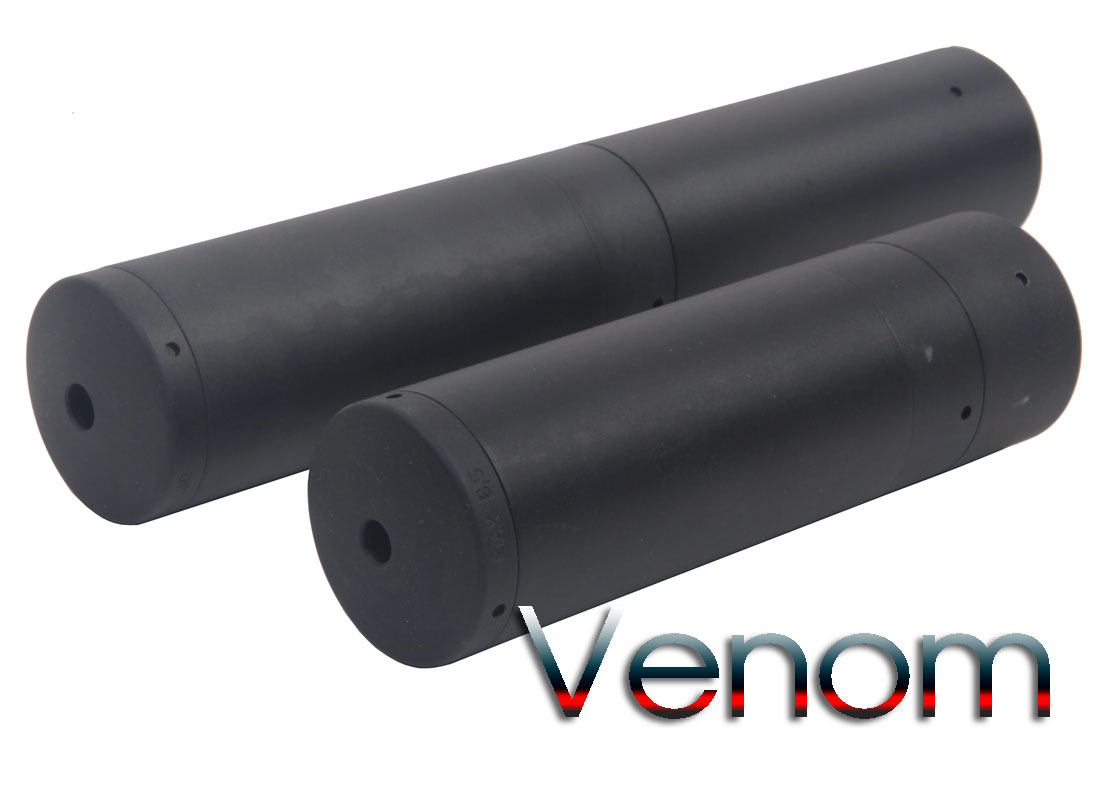

Venom - RRP £360.00

Lighter than both the Superdome and Thunderdome, the Venom is available in both muzzle mounted and over barrel, offering excellent sound reduction in a compact package. Featuring a the Venom's efficient internal design and a tough scratch resistant external finish.

  Muzzle Mounted Over Barrel
Length 165mm 255mm
Adds to barrel length 150mm 150mm
Diameter 50mm 50mm
Weight 365 g 470 g

Available in 6.5mm (.256” max).  7mm (.275” max). 8mm (.315mm max). New for the UK is the .30" cal.

Thread sizes
Metric Imperial
M14x1
M15x1
M17x1
M18x1
1/2” x 20 UNF
1/2” x 28 UNEF
5/8” x 24
Schultz & Larsen Venom Moderator

Maintenance

The moderators require minimal cleaning to prevent rusting. The recommended cleaning method is to run a cleaning rod through the moderator periodically. In theory the carbon left behind from usage actually reduces the noise as it slows the gases flowing through the moderator.


Rimfire Moderators

Even though a rimfire rifle is not offered in the Schultz & Larsen range, the company do make a rimfire specific moderator. As you would expect from a company dedicated to doing everything in the best way, they offer a dedicated .17 moderator for the very popular .17HMR.

Rimfire moderators are muzzle mounted.

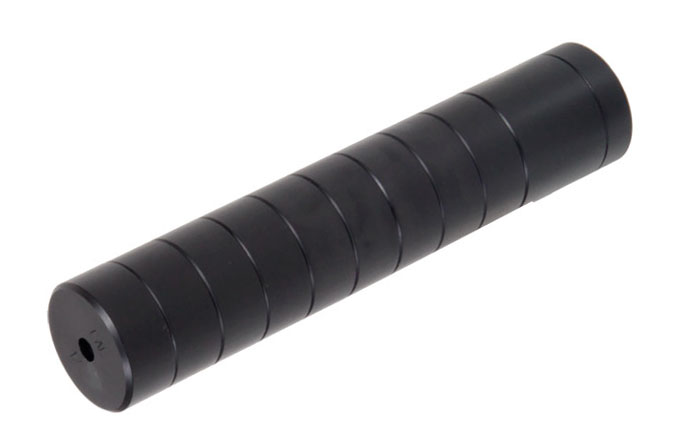

.17 Rimfire Moderator - RRP £125.00

Length 141mm
Diameter 30mm
Weight 95 g
Decibel Reduction 27 db
Thread 1/2" x 20 UNF
Schultz & Larsen Superdome
